Slim Conference Tabletop LCD / LED Monitor Motorized Lift with FHD
Screen and Microphone
BNT LCD Monitor Motorized Lifting Mechanism is the modern design
for the high-classs conference system table furniture. This
audio-visual system is using for the large conference room , it
normally hidden behind under the conference table and keep the
table even and neat and save more space. When having the meeting,
user can touch the up botton of the surface panel or remote
controller to control the screen lifting up from the conference
table. In addition, regard to the microphone lift, it has the
automatical straighting up function, When user speaking, they can
let the microphone bend and getting good vioce. After using, user
not need to let the microphone straight by themselves. Control the
mechanism lifting down itself, the microphone would be straighting

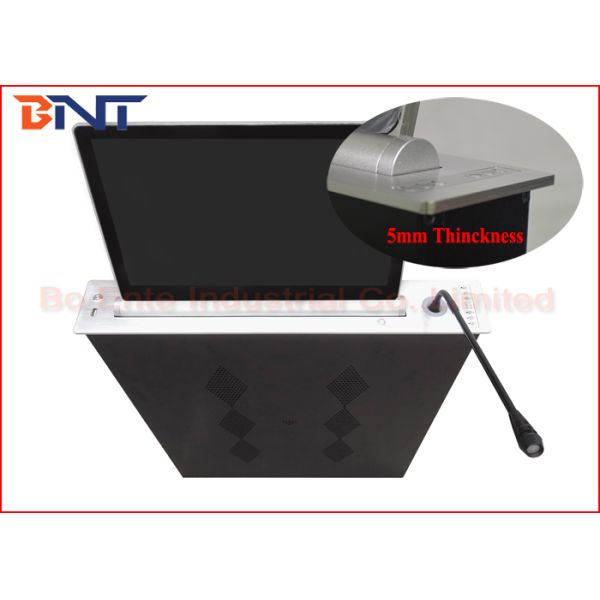

1, 5mm Super thickness aluminum alloy brushed surface cover panel,
with anti-rust anodic oxidation treatment process.
2, Full aluminum alloy metal screen shell, provided smart, elegant
and high grade appearance.
3, Supply with FHD 1920*1080 screen, FHD touch screen and
All-in-one computer screen three options.
4, Smart circuit board offer monitor protection, monitor could be
power on once arrived the desktop, and be power off if reach the
5, The seamless, tightly integrated design allows a perfect
combination of conference table and lifting mechanism.
6, Supply with two high-quality automatical lifting up and
automatic angle swivel motors.
7, Using capacitive touch control panel, have"UP", "DOWN", "STOP",
"FRONT", "BACK", "SWITCH" button options.
8, The FHD screen using high quality capacitive panel screen, high
sensitivity, durable, not easy to scratch.
9, Working smoothly and quietly during operation. Low noise which
less than 30db.
10, Lifting with microphone, and supply with automatic straighting
|Product||Slim Conference LED Monitor Motorized Lifting Mechanism|
|Material||Aluminum Alloy Brushed|
|Surface Treatment||Darwing Finished And Anodic Oxidation Resistance|
|Color||Brushed Aluminum Silver and Brushed Matte Black|
|Function||LCD Monitor Lift with Microphone Lift|
|Microphone||Automatic straighting function|
|Application||High-class conference room|
110 ~ 240 VAC
|Rated current||5 ~ 10 Amp|
|Monitor||18.5" FHD LED touch screen|
|Monitor Tilting Angle||0 ~ 45 degree|
|Data Interface||HDMI Input, USB input, RS232 I/O, Wire Control|
|Customized Service||Could integrated with touch screen, microphone, front camera, all
in one screen|
|Control system||truch switch, wireless remote , central control RS232|
LCD Monitor Lift is widely used on conference system, like video
conference system, tv conference system, financial analyzing
system, advanced office system, lecture and training room with
conference table& computer desk together.
Study the user’s manual carefully before installation.
All of our products provide 12 months warranty! The warranty period
starts from the goods receipt by initial consignee.
