Luxury Conference Tabletop LCD Monitor Lift with 21.5 FHD Touch Screen
Introduction:
Integrated 21.5 inch FHD Touch screen LCD monitor Lift system is designed for advanced audio video conference system. It is widely used for video conference system, TV conference system, and financial analyzing system and other commercial office or meeting room. Workable with central control, microphone, and other office equipment, paperless office software for office audio video solution.

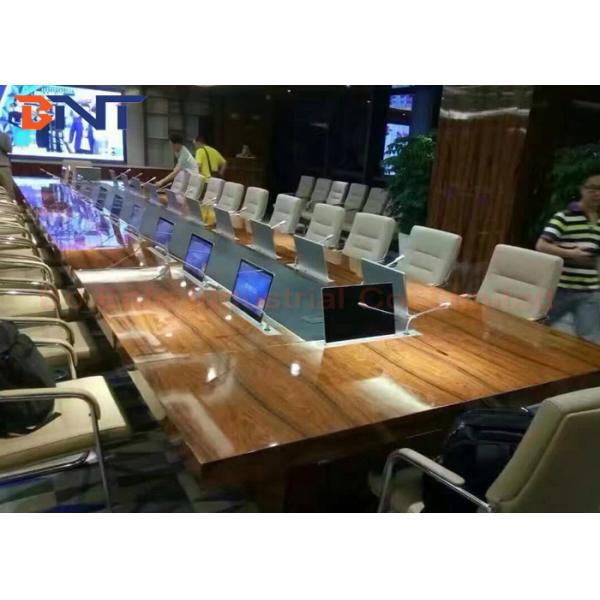

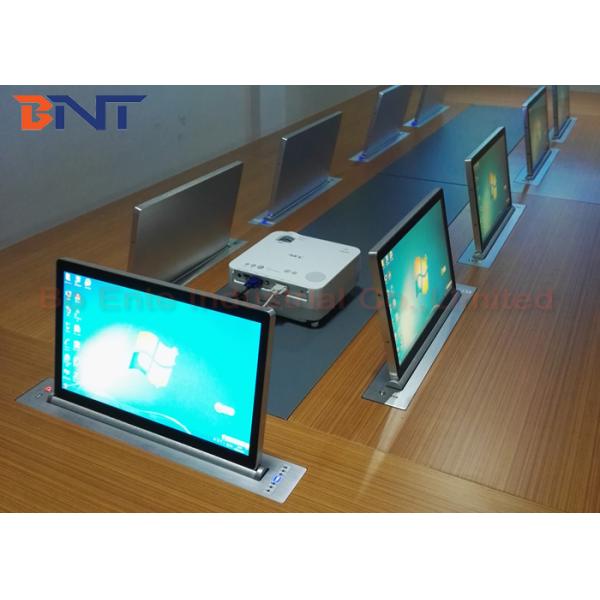

The LCD monitor lift screen ordinary hidden on the meeting table to keep the tabletop even and neat; when multimedia meeting, the monitor can be lift up separately. All LCD display the multimedia information including meeting content, information hint and picture information,sound, video and audio.
LED Touch screen is the advance design for the LCD monitor lift system. It is equipped with a touch-screen display, in the multi-function media conference, the user can touch the screen to show you the program to be expressed, and truly realize the paperless interactive information function.
Features:
1, Made of 5mm thick aluminum alloy drawing panel and brush aluminum alloy monitor shell, provided smart, elegant and high grade appearance
2, Smart circuit board offer monitor protection, monitor could be power on once arrived the desktop, and be power off if reach the bottom automatically.
3, Supply with full metal aluminum alloy shell FHD 21.5 inch LED monitor screen.
4, Perfectly matched, closely coupled mechanical structure design, working smoothly and quietly during operation. Low noise which less than 30db.
5, Superior gear appliance with double rack to ensure steady and reliable lifting for screen without damaged.
6, Screen angle electrical adjustable selection, 15, 20, 25, 35 degree as required. To provide prefect reading on meeting.
7, Complicated with AMX/Crestron and wireless network control
8, With touch screen function, it can realize the paperless interactive system of conference room
Specification:
| Product | Ultra-thin LCD Monitor Lift with screen |
| Screen | Full metal aluminum alloy HD touch screen |
| Model No. | BLL-21.5 |
| Materail | Brushed aluminum alloy |
| Color | Black or silver |
| Panel Size | 640*88mm |
| Panel Thickness | 5mm |
| Box Size | 675*620*75.5mm |
| Monitor | 21.5" FHD LED touch screen |
| Monitor Thickness | 11.5mm |
| Resolution | 1920*1080 |
| Monitor Tilting Angle | 0~45 degree |
| Data Interface | HDMI Input, USB input, RS232 I/O |
| Customized Service | Could integrated with touch screen, microphone, front camera, all in one screen |
| Control system | truch switch, wireless remote , central control RS232 |
| Application | High-class office conference meeting room |
| Rated voltage | 110 ~ 240 VAC |
| Rated current | 5 Amp |
| Rated power | 40 W |
| Contrast ratio | 1000 : 1 |
| Brightness | 250 cd / m2 |
| Colors | 16.7 million (10-bit) |
| Response time | 3.5 ms |
| Angle of view | :85/85/80/80 (L / W / H / H) |
| Frequency | 60 Hz |
Selling Points:
1, Ultra-thin Design, only 8.8cm width of whole product, Monitor is 10mm thickness.
2, Adopting superior gear appliance with double rack to ensure stable and reliable lifting for screen
3, Could integrated with touch screen, microphone, front camera, all in one computer as required.
4, Equipped with VGA or HDMI, USB, XRL,RS232 data interfaces for convenient data access.
5, 10 year LCD motorized lift manufacturing experience, quality approved with FCC CE ROSH SASO CCC
Pictures:
Factory Information:
Boente supplied with 15.6~21.5 Inch monitor lift with HD screen system,15~24 Inch LCD monitor lift, 21~23
inch All In One PC monitor lift, 19~22 inch Motorized LCD lift with 45 degree monitor flip up, 19~22 inch computer LCD lift with microphone, LCD lift with microphone and desktop socket, 17~21 Inch LCD flip up device with monitor, keyboard and mouse.
The quality of all our products had approved by CE& ROSH, SASO.
OEM service with logo is available. On-time shipment, payment protection and product quality protection!
